Toilet grab bars can make everyday bathroom use safer and more comfortable, especially for older adults, people with limited mobility, and anyone who needs extra support when sitting down or standing up.
But what exactly does the Fair Housing Act (FHA) require when it comes to toilet grab bars?
The answer may be different from what many homeowners expect.
What Does the FHA Require for Bathroom Grab Bars?
Under the design and construction requirements of the Fair Housing Act, covered multifamily housing must include sufficient plywood or structural wood blocking inside bathroom walls so that grab bars can be installed in the future.
The U.S. Department of Housing and Urban Development (HUD) refers to this as:
Requirement 6 – Reinforced Walls for Grab Bars
There is an important distinction: the Fair Housing Act generally does not require grab bars to be installed in every residential bathroom during construction.
Instead, it requires bathroom walls to have adequate structural reinforcement so that suitable grab bars can be installed later.
HUD’s Fair Housing Accessibility Guidelines explain the wall-reinforcement requirements for bathroom grab bars, including reinforcement around toilets, bathtubs, and showers.
Depending on the wall construction, reinforcement may include plywood panels or structural blocking, provided it offers sufficient support at the locations where grab bars may later be installed.
Reference: HUD Fair Housing Act Design Manual
FHA vs. ADA: Why They Should Not Be Confused
People often discuss the FHA and the ADA together when talking about bathroom grab bars. However, the two laws have different scopes and purposes.
FHA (Fair Housing Act)
The FHA primarily addresses covered residential buildings and their accessibility design and construction requirements. One important requirement is that bathroom walls be appropriately reinforced so grab bars can be installed in the future.
ADA (Americans with Disabilities Act)
The ADA primarily addresses accessibility in public accommodations and commercial facilities, and it provides more specific requirements for the placement and dimensions of grab bars in accessible restrooms.
For example, under Section 604.5 of the 2010 ADA Standards for Accessible Design:
· The side-wall grab bar at an accessible toilet is generally required to be at least 42 inches long.
· The rear-wall grab bar is generally required to be at least 36 inches long.
· The top of the horizontal grab bar gripping surface is generally required to be 33–36 inches above the finished floor.
Keep in mind that these specific ADA dimensions should not be described as “FHA grab bar dimensions.” The FHA and the ADA are separate legal frameworks.
Where Should a Toilet Grab Bar Be Installed?
When planning toilet grab bars, first consider how the user approaches the toilet, sits down, and stands up comfortably.

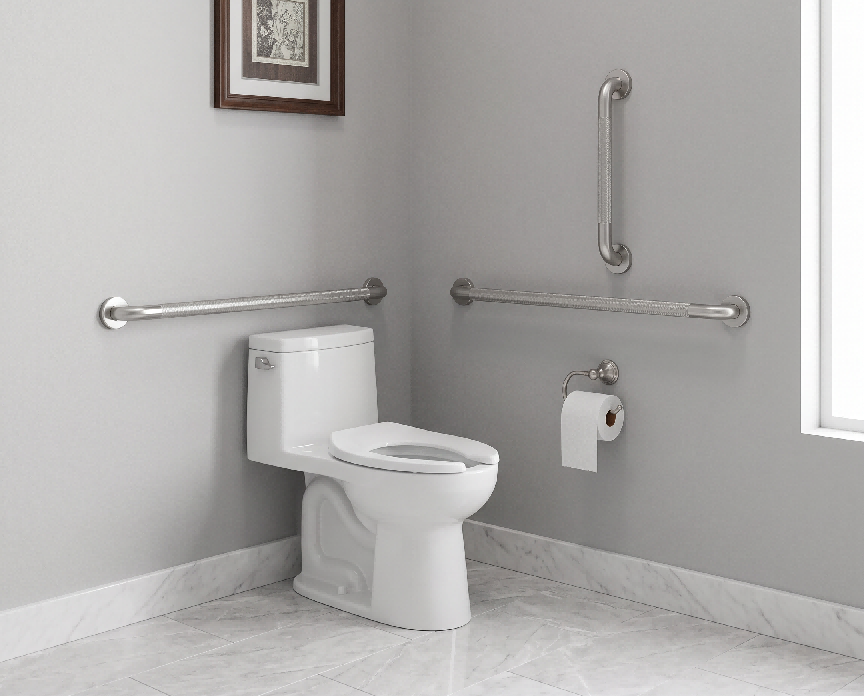

A typical accessible toilet area may include:
· A side-wall grab bar
· A rear-wall grab bar
· Adequate maneuvering space around the toilet
· Structural reinforcement behind the intended grab-bar mounting locations
· An appropriate grab-bar height
· A mounting method that securely anchors the grab bar
For toilet facilities covered by the ADA:
The side-wall grab bar must be at least 42 inches (1,065 mm) long. It must extend at least 54 inches (1,370 mm) from the rear wall at the required end and be positioned no more than 12 inches (305 mm) from the rear wall, as specified by the applicable ADA layout requirements.
The rear-wall grab bar must be at least 36 inches (915 mm) long, extending at least 12 inches (305 mm) to one side of the toilet centerline and at least 24 inches (610 mm) to the other side.
These dimensions come from ADA requirements for accessible toilet facilities.
For an ordinary private residence, however, the appropriate installation dimensions should be determined based on the type of home, applicable local building codes, and the needs and physical abilities of the person who will use the grab bar.
Toilet Grab Bar Installation Height
For accessible toilet facilities that must comply with the ADA, the top of the grab bar’s gripping surface is generally required to be 33–36 inches above the finished floor.
This measurement refers to the top of the gripping surface—not simply the center of the grab bar.
In a private residence, the most comfortable installation height may vary depending on the user’s height, mobility, and method of standing up.
Therefore, in addition to consulting relevant standards, residential installations should take the actual user’s needs into account.
The grab bar should be positioned where the user can reach it naturally when sitting down, standing up, or transferring.
Wall Support Is Just as Important as Grab-Bar Placement
A grab bar’s safety depends not only on where it is installed, but also on whether it is securely attached to suitable structural support.
HUD’s Fair Housing Accessibility Guidelines emphasize that bathroom walls should include adequate reinforcement to allow suitable grab bars to be installed in the future.
This means that attaching a grab bar only to drywall does not guarantee adequate stability.
Before installation, confirm the following:
1. The locations of wall studs or other structural reinforcement.
2. Whether the intended mounting points have sufficient structural support.
3. Whether the screws and mounting hardware are appropriate for the wall structure.
4. Whether sufficient hand clearance will remain after installation.
5. Whether the installed grab bar meets the user’s intended needs.
Before installation Installing... After installation
HUD’s guidance does not mandate one specific reinforcement material or installation method. For example, plywood or structural wood blocking may be used, provided the location and strength of the reinforcement are adequate for future grab-bar installation.
What Makes a Toilet Grab Bar Suitable for Everyday Use?
In addition to placement and dimensions, the grab bar’s design can affect the user experience.
A secure gripping surface
The user should be able to hold the grab bar firmly without the hand slipping easily.
Reliable structural attachment
The mounting system should be securely connected to suitable wall framing or another appropriate support structure.
Appropriate placement
The grab bar should be installed where the user can reach it naturally when sitting down and standing up.
Adequate gripping clearance
There should be enough space between the grab bar and the wall for the user to wrap their hand around the bar comfortably.
For facilities subject to the ADA, the 2010 ADA Standards also specify the clearance between a grab bar and the wall:
A minimum clear space of 1.5 inches must be maintained between the wall and the grab bar.
The ADA also specifies requirements for the dimensions of the gripping surface and the structural strength of grab bars.
Toilet Grab Bar Installation Checklist
Before installing a toilet grab bar, use the following checklist:
· ☐ Determine which side the user primarily uses to approach and leave the toilet.
· ☐ Locate the wall studs or structural reinforcement.
· ☐ Choose an appropriate grab-bar position.
· ☐ Measure the height from the finished floor.
· ☐ Confirm the grab bar’s length and orientation.
· ☐ Select mounting hardware suitable for the wall structure.
· ☐ Make sure the grab bar will not interfere with the toilet, bathroom door, or other fixtures.
· ☐ After installation, check that the grab bar is firmly secured and stable.
For new construction or major bathroom renovations, planning the reinforcement locations before the walls are closed can make future grab-bar installation much easier.
A Safer Bathroom Starts Behind the Wall
Accessible bathroom design involves more than simply installing a grab bar.
Wall reinforcement, toilet placement, available bathroom space, and the physical needs of the person using the bathroom can all affect how well a grab bar works.
The Fair Housing Act helps make future grab-bar installation possible by requiring appropriate wall reinforcement in covered housing.
The ADA, in turn, provides more detailed dimensional and installation requirements for accessible restrooms in covered public and commercial settings.
For homeowners, the most important first step is to determine which laws, standards, and building codes apply to the property. Then plan a grab-bar installation that suits the bathroom layout and the user’s needs.
If you are unsure about the wall structure or the applicable accessibility requirements, consult a qualified building, remodeling, or accessibility professional before installation, and confirm the local building codes that apply.
